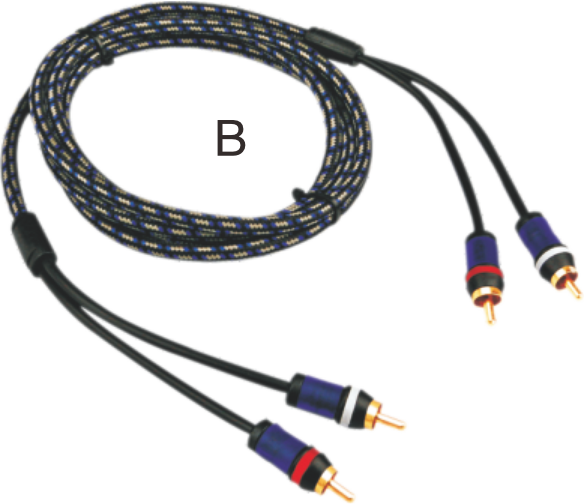

DT1013

Transmits 2 channels audio.Has shielded three times and Connects well.Conductordrainsφmm:OFC24 AWG 99.99%Conductorinsulation:PEred+whiteConductorinsulationφinmm1.1Fillermaterial:1stshield:AL2ndshield:
描述 产品型号
描述

Transmits 2 channels audio.

Has shielded three times and Connects well.


Conductordrainsφmm:

OFC24 AWG 99.99%

Conductorinsulation:

PEred+white

Conductorinsulationφinmm

1.1

Fillermaterial:


1stshield:

AL

2ndshield:

OFC braided

Outerisolation:

PVCblack

Outerisolation:

Black+gray orblue+gray acrtlic fiberjacket

Outerisolationφinmm:

6.5

Modle

Length

1.5FT

1.5FT/0.45M

3.0FT

3.0FT/0.9M

6.0FT

6.0FT/1.8M

10FT

10FT/3.0M

15FT

15FT/4.5M

20FT

20FT/6.0M

25FT

25FT/7.5M

30FT

30FT/9.0M

Conductor

resistance

Shield

resistance

Capacity

Innercond

Cspacity

nner condShield

innercond

Working

temperature

min/max

Working

Voltag

overflash

Nomimpedance

120ohm/km

25ohm/km

60PF/m

78PF/m

-20~60℃

30V

110ohm
