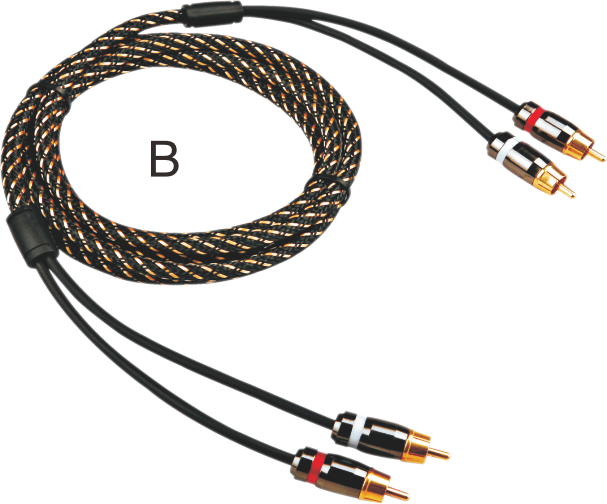

Transmits2 channels audio.
Has shielded three timesand Connects well.
Conductordrainsφmm: | OFC24 AWG 99.99% |
Conductorinsulation: | PEred+white |
Conductor insulationφinmm: | 1.1 |
Fillermaterial: | |
1stshield: | AL |
2ndshield: | OFC braided |
Outerisolation: | PVCblack |
Outerisolation: | Blackorblack+yellownylonjacket |
Outerisolationφinmm: | 6.5 |
Modle | Length |
1.5FT | 1.5FT/0.45M |
3.0FT | 3.0FT/0.9M |
6.0FT | 6.0FT/1.8M |
10FT | 10FT/3.0M |
15FT | 15FT/4.5M |
20FT | 20FT/6.0M |
25FT | 25FT/7.5M |
30FT | 30FT/9.0M |
Conductor resistance | Shield resistance | CaoAcity Innercond | Cspacity innercond Shield innercond | Working temperature min/max | Working Voltag overflash | Nomimpedance |
120ohm/km | 25ohm/km | 60PF/m | 78PF/m | -20~60℃ | 30V | 110ohm |
